1-1/2" Two-Speed Straight Handle Pneumatic Torque Wrench
● 970~8100 Nm
نموذج :
SA2508-81
SA2508-81 1-1/2"
Two-Speed Straight Handle Pneumatic Torque Wrench
● Engineering plastic handle, light weight, low noise design
● Preset the torque through the air pressure to stop the set torque value
● 0.6 MPa compressed air, the maximum power consumption of 600 L/min
● More suitable for space-constrained occasions, using silent motor,
the accuracy is ± 5%
● High/low speed mechanical shifting to meet different working conditions
● High-intensity overall reaction force arm, not easy to break, 360 degree adjustment
● New ergonomic design handle that can be rotated to improve operation convenience
and comfort
Two-Speed Straight Handle Pneumatic Torque Wrench
● Engineering plastic handle, light weight, low noise design
● Preset the torque through the air pressure to stop the set torque value
● 0.6 MPa compressed air, the maximum power consumption of 600 L/min
● More suitable for space-constrained occasions, using silent motor,
the accuracy is ± 5%
● High/low speed mechanical shifting to meet different working conditions
● High-intensity overall reaction force arm, not easy to break, 360 degree adjustment
● New ergonomic design handle that can be rotated to improve operation convenience
and comfort
SA2508-81 1-1/2"
Two-Speed Straight Handle Pneumatic Torque Wrench
Contents
● 1PC Pneumatic Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
Two-Speed Straight Handle Pneumatic Torque Wrench
Contents
● 1PC Pneumatic Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
|

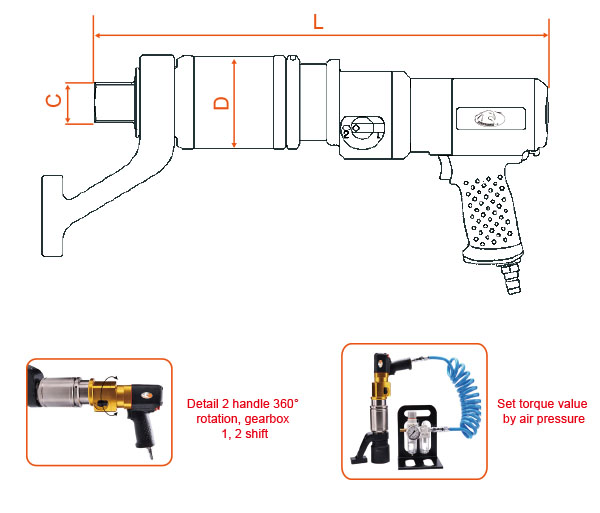

Model No. |
Torque |
Square |
Outer |
Length |
No-load |
Weight |
Packing |
|
Nm |
C (Inch) |
D (mm) |
L (mm) |
R.P.M |
kg |
Set/ Ctn/ G.W/ N.W/ Cuft (kgs) |
|
|
SA2508-81 |
970-8100 |
1-1/2 |
129 |
452 |
3.5 |
15.5 |
1/Ctn/ 30.8 / 29.8/ 1.56' |
