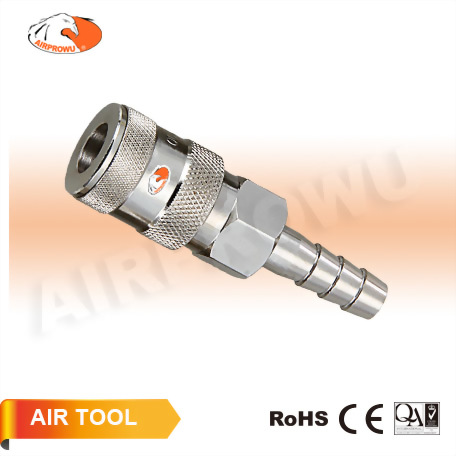

3/8" Hose 5 in 1 Universal Quick-Connect Couplers
نموذج :
UQC-30SHA
UQC-30SHA 3/8" Hose
5 in 1 Universal Quick-Connect Couplers

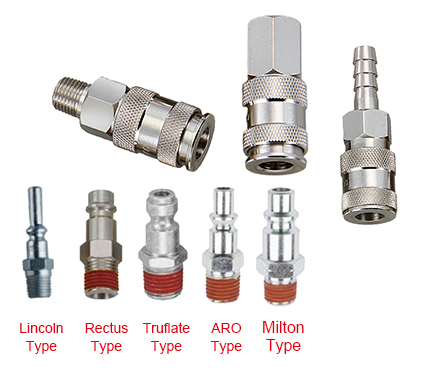

● Compatible for 5 types of fitting:
with easier interchange, different systems
coupler can connect with each other
without limitation.
● With 6 steel locking balls design which can
enhance good connection, ensure quality and
prolong lifetime.
● Temp Range: -20 ~ +80ºC
5 in 1 Universal Quick-Connect Couplers
● Compatible for 5 types of fitting:
with easier interchange, different systems
coupler can connect with each other
without limitation.
● With 6 steel locking balls design which can
enhance good connection, ensure quality and
prolong lifetime.
● Temp Range: -20 ~ +80ºC
UQC-30SHA 3/8" Hose
5 in 1 Universal Quick-Connect Couplers
5 in 1 Universal Quick-Connect Couplers
|
Model No. |
Discription |
Size |
Length |
Height |
Material |
|
Working |
Max. |
Air |
|
- |
Inch |
mm |
mm |
kgf/cm2 |
kgf/cm2 |
At 10 kg/cm2 |
|||
|
UQC-30SHA |
Hose |
3/8" |
79.0 |
24 |
Steel |
Coupler |
15 |
20 |
>450 L/m |
UQC-30SHA 3/8" Hose
5 in 1 Universal Quick-Connect Couplers
● Pneumatic Tool
● Air piping
● Air pressure equipment
5 in 1 Universal Quick-Connect Couplers
● Pneumatic Tool
● Air piping
● Air pressure equipment
