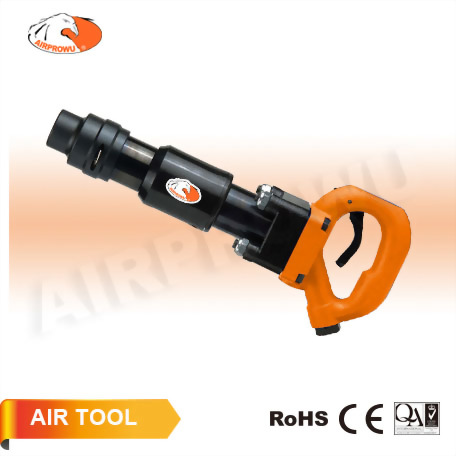

3" Four Bolts Chipping Hammer

نموذج : SA7423 / SA7423H

كمية :

SA7423 Round Shank
SA7423H Hex Shank
3" Four Bolts Chipping Hammer

● Blow Per Min: 1,900 BPM
● Round Shank: Ø 17.2 (0.68")
● Hex Shank: Ø 14.7 (0.58")

SA7423 Round Shank
SA7423H Hex Shank
3" Four Bolts Chipping Hammer

Model No.

Blows
Per Minute

Chisel Shank
Diameter
(mm)

Piston
Stroke

Piston
Diameter

Net
Weight

Overall
Length

Air Inlet

Hose
Size

Air
Cons.

打擊次數

鑿刀柄直徑

行程

活塞直徑

重量

長度

進氣口

氣管

耗氣量

B.P.M

Round

Hex

Inch

PT(NPT)

Inch

CFM

LPM

SA7423(H)

1,900

17.2

14.7

4.4

113

1.1 x 2.9

28.5 x 73.5

18.7

8.5

16.7

423

3/8"

1/2

5.6

159

SA7423 Round Shank
SA7423H Hex Shank
3" Four Bolts Chipping Hammer

● Four high strength 1/2" bolts lock mechanism increased tool's durability, strength and ease service.
● Available in 1", 2", 3" or 4" stroke cylinder versions.
● Standard retainer strong and reliable.
● D-type handle with inner trigger.
● Choice of bushing: 0.58" Hex, prevents chisel rotation, 0.68" Round, chisel rotates freely.
