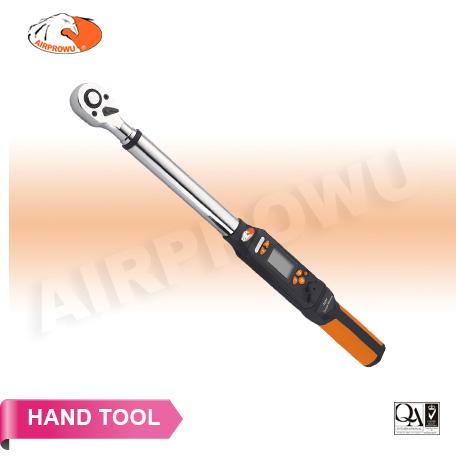

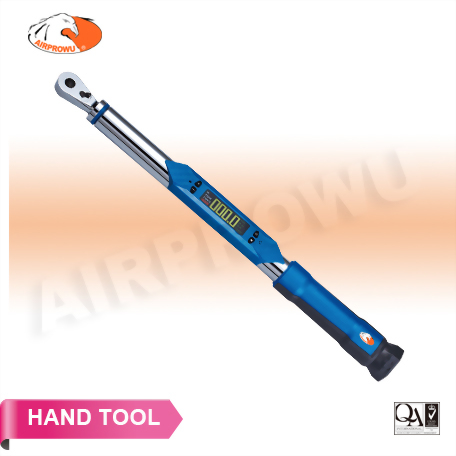

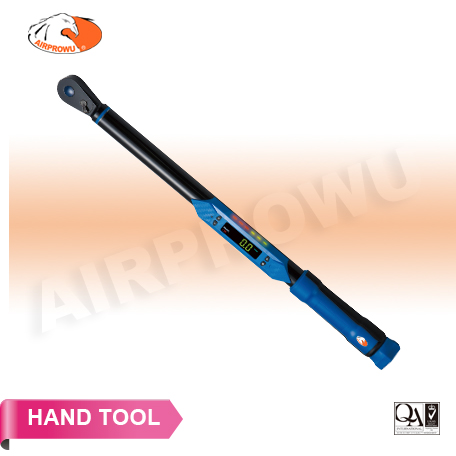

90T Digital Torque Angle Wrench
نموذج :
DTRL-K3 Series
DTRL-K3 Series NEW
90T Digital Torque Angle Wrench
● 50 sets of memory capacity with QUICK SET function.
● 6 LEDs: Green (Near Reached) / Orange (Target Reached) /
Red (Over Reached) for visual alerting.
● Standard functions:
torque setting, measurement setting, mode setting, Angle setting.
● Operation in both clockwise and counter-clockwise directions.

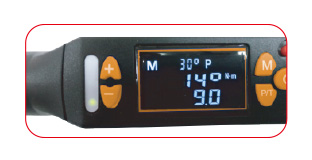

● LCD display shows kg-cm, lb-in, lb-ft, N-m, °A
● 3 means for torque or angle confirmation
by LED, buzzer, and vibration.
● Easy to set up Peak, Trace or Angle modes.
● Anti-slip soft grip
90T Digital Torque Angle Wrench
● 50 sets of memory capacity with QUICK SET function.
● 6 LEDs: Green (Near Reached) / Orange (Target Reached) /
Red (Over Reached) for visual alerting.
● Standard functions:
torque setting, measurement setting, mode setting, Angle setting.
● Operation in both clockwise and counter-clockwise directions.
● LCD display shows kg-cm, lb-in, lb-ft, N-m, °A
● 3 means for torque or angle confirmation
by LED, buzzer, and vibration.
● Easy to set up Peak, Trace or Angle modes.
● Anti-slip soft grip
DTRL-K3 Series NEW
90T Digital Torque Angle Wrench
● Angle Measure: 360° ● Resolution: 0.1
● Data Memory: 50 sets of memory capacity (P1-P50 Auto Record)
● Operation Modes: Peak / Trace / Angle
● Unit Selection: Kg-cm, Ib-in, Ib-ft, N-m, °A
● Battery: AAA DC 1.5V x 3 PCS
● Operation Temperature: -10°C - 60°C (13.9°F - 139.9°F)
● Storage Humidity: -20°C - 70°C (-4°F - 157.9°F)
● Operation Humidity: 15 - 90%
● Auto Power Off: After 80 seconds of idle status

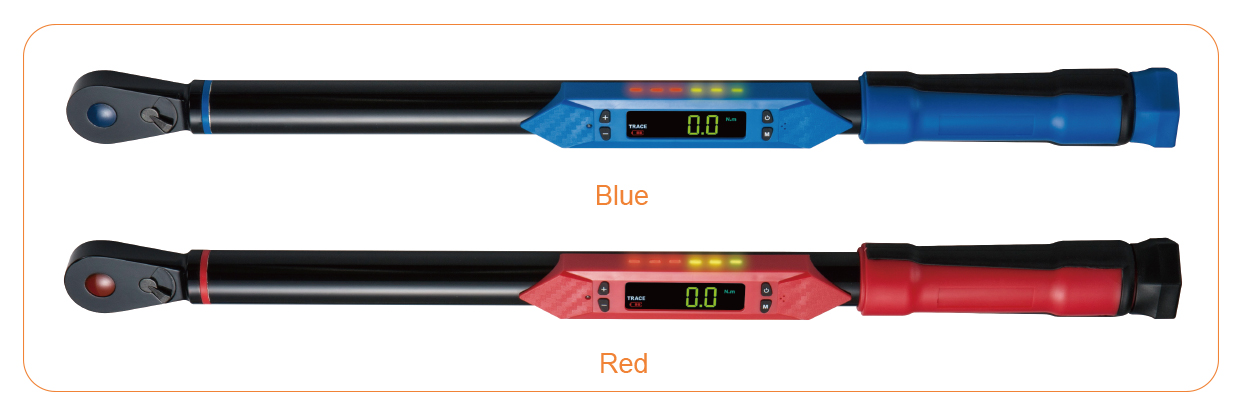

● Optional Color: Blue, Red ● Hand Use Only.
90T Digital Torque Angle Wrench
● Angle Measure: 360° ● Resolution: 0.1
● Data Memory: 50 sets of memory capacity (P1-P50 Auto Record)
● Operation Modes: Peak / Trace / Angle
● Unit Selection: Kg-cm, Ib-in, Ib-ft, N-m, °A
● Battery: AAA DC 1.5V x 3 PCS
● Operation Temperature: -10°C - 60°C (13.9°F - 139.9°F)
● Storage Humidity: -20°C - 70°C (-4°F - 157.9°F)
● Operation Humidity: 15 - 90%
● Auto Power Off: After 80 seconds of idle status
● Optional Color: Blue, Red ● Hand Use Only.
|
ITEM NO. |
Square |
Teeth |
Display Range |
Accuracy |
Length |
|
mm |
|||||
|
DTRL-45538-K3 |
3/8" |
90 |
27 - 135 Nm |
±2% |
455 |
|
DTRL-53512-K3 |
1/2" |
90 |
40 - 200 Nm |
±2% |
535 |
