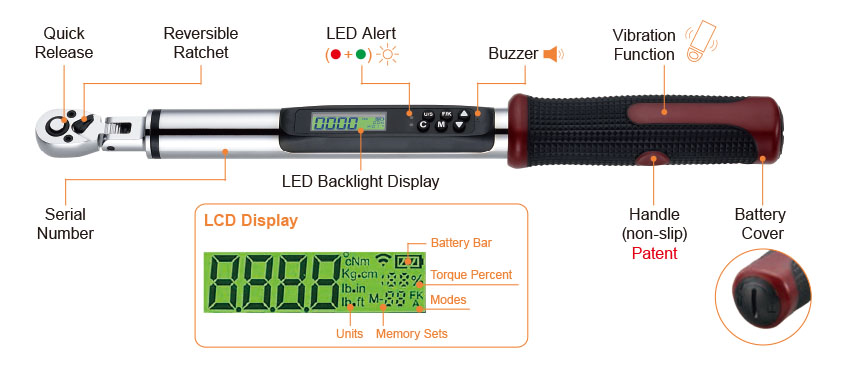

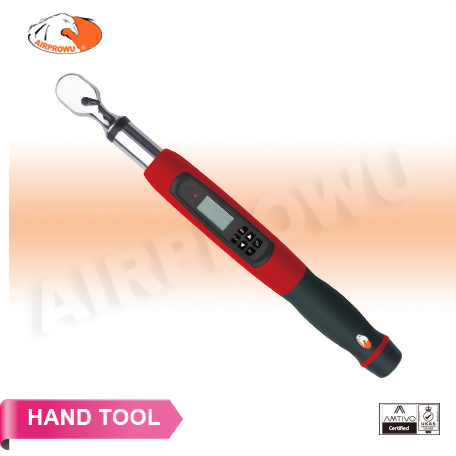

Fixed Head Digital Torque Wrench
نموذج :
DTRL-FI Series
DTRL-FI Series
Fixed Head Digital Torque Wrench
● Accuracy (20% - 100% of Full Scale):
CW±2% + 1 LSD ; CCW±3% + 1 LSD
(LSD = Least Significant Digit)

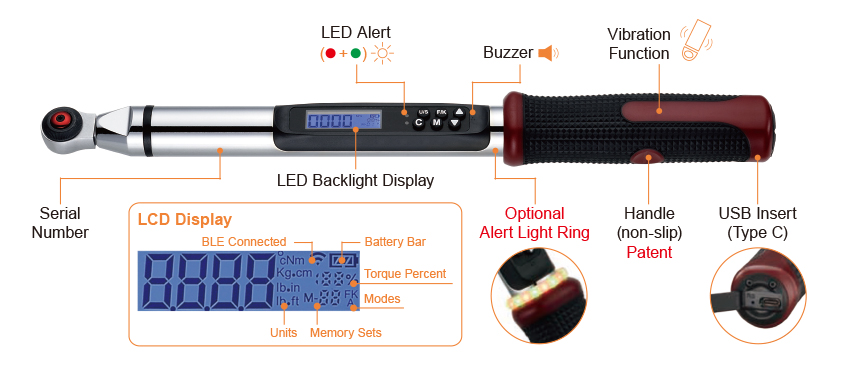

● Action: 5 ● Memory: 32
● Torque Unit: Nm, lb-ft, lb-in, kgf-m, kgf-cm
● Battery: AA x 2 ● Backlight: Yes
● Alert: LED & Buzzer ● Touch: Vibration
Fixed Head Digital Torque Wrench
● Accuracy (20% - 100% of Full Scale):
CW±2% + 1 LSD ; CCW±3% + 1 LSD
(LSD = Least Significant Digit)
● Action: 5 ● Memory: 32
● Torque Unit: Nm, lb-ft, lb-in, kgf-m, kgf-cm
● Battery: AA x 2 ● Backlight: Yes
● Alert: LED & Buzzer ● Touch: Vibration
|
ITEM NO. |
Square |
Teeth |
Setting Range |
Length |
Weight |
|
Nm |
mm |
kg |
|||
|
DTRL-40038-FI |
3/8" |
72 |
10 - 135 |
400 |
1.05 |
|
DTRL-55012-FI |
1/2" |
72 |
20 - 200 |
550 |
1.35 |
|
DTRL-62812-FI |
1/2" |
72 |
34 - 340 |
628 |
1.7 |
