Hose Removal Pliers
نموذج :
AET-00587
AET-00587
Hose Removal Pliers
AET-00587
Hose Removal Pliers
Features:
- Easily disconnects hoses by gripping firmly the tubes/lines.
- Jaw for 3/16", 1/4" and 3/8" tubes and lines,
- Especially suitable for hoses connected to tubes or
- lines with smooth surface, where exercising pushing force is not possible,

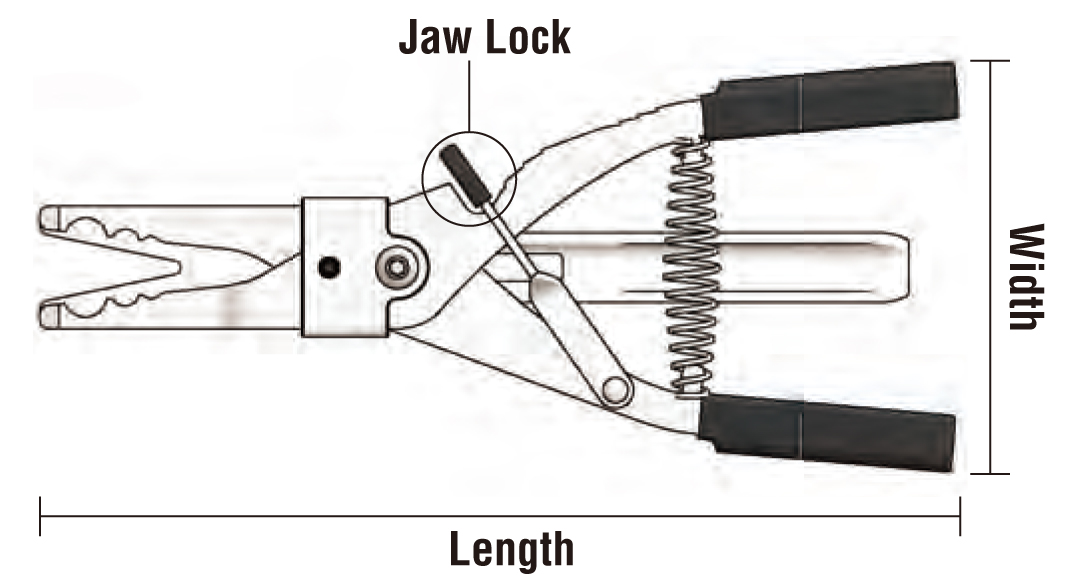

- Pointed jaw tip allows access to confined spaces,Special locking design enhances secure gripping
AET-00587
1. Remove hose clamp on the hose to be disconnected.
Insert the jaw tip into the place where hose and tube or line is connected.
2. Choose a suitable sized groove on jaw tip and grip the tube or line.
3.Move the jaw lock downward and make sure the jaw is securely locked

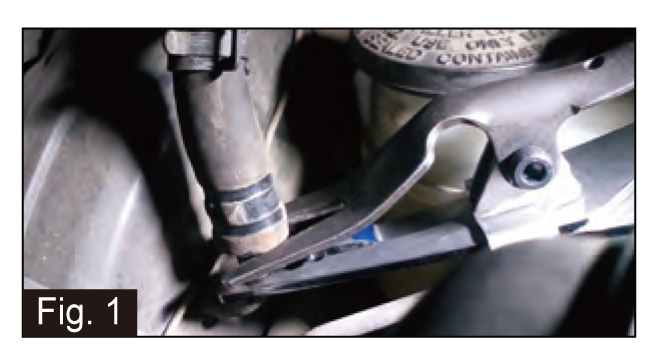

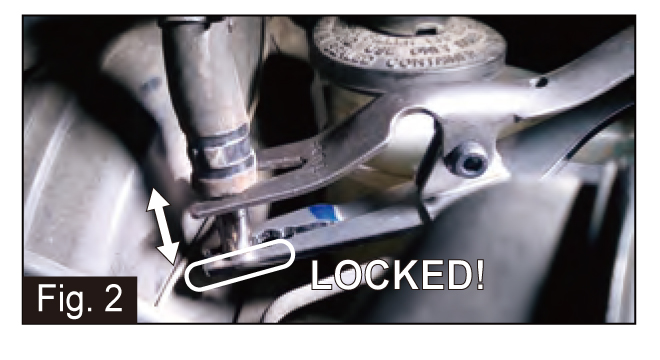

4.Disconnect the hose by pushing the two parts of the pliers towards each other (Fig. 1 and 2).
Other instruction images are as follows:

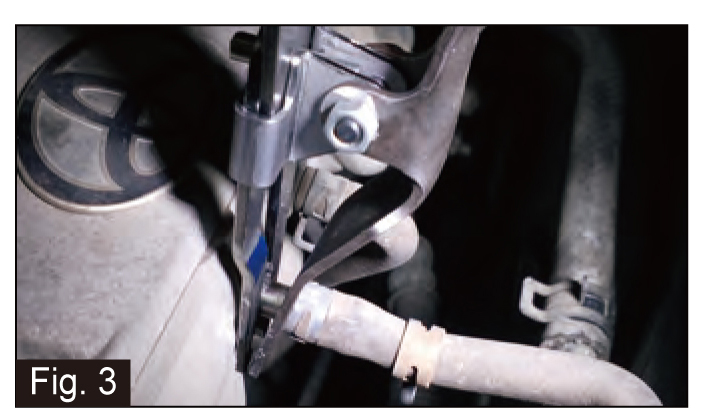

Fig. 3 Works on vacuum line on intake manifold

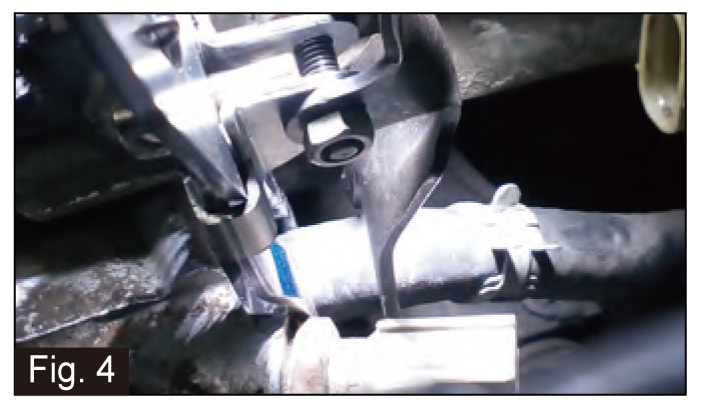

Fig. 4 Works on idle valve near the coolant hose to engine

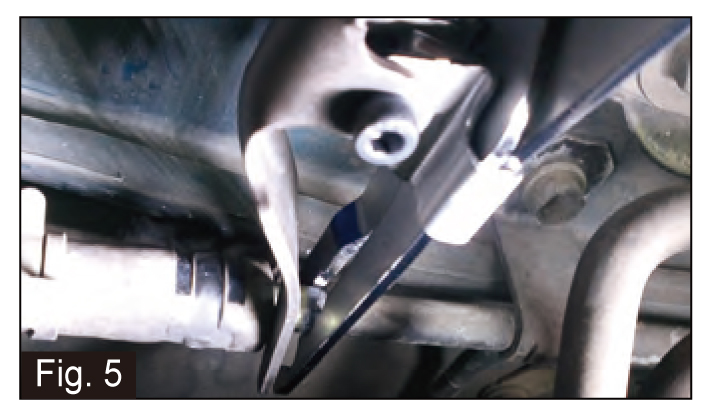

Fig. 5 Works on brake booster vacuum line near firewall
Hose Removal Pliers
Instructions1. Remove hose clamp on the hose to be disconnected.
Insert the jaw tip into the place where hose and tube or line is connected.
2. Choose a suitable sized groove on jaw tip and grip the tube or line.
3.Move the jaw lock downward and make sure the jaw is securely locked
4.Disconnect the hose by pushing the two parts of the pliers towards each other (Fig. 1 and 2).
Other instruction images are as follows:
Fig. 3 Works on vacuum line on intake manifold
Fig. 4 Works on idle valve near the coolant hose to engine
Fig. 5 Works on brake booster vacuum line near firewall
