Offset Ring Wrench
W5602 Series SAE
Offset Ring Wrench
● Meets DIN, 40CRV, CE, ASIA
|

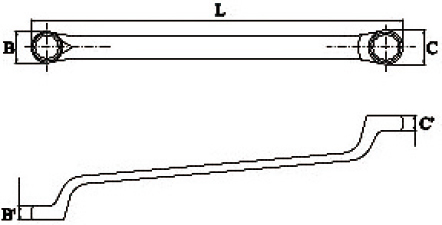

ITEM NO. |
SIZE |
L |
C |
B |
C' |
B' |
WT |
||
|
MM |
SAE |
MM |
Inch |
mm |
mm |
mm |
mm |
mm |
g |
|
W56010607 |
|
6x7 |
|
167 |
12 |
10.5 |
6 |
5.3 |
39 |
|
W56010608 |
W56020608 |
6x8 |
1/4x5/16 |
172 |
13.5 |
10.5 |
6.3 |
5.3 |
50 |
|
W56010809 |
|
8x9 |
|
182 |
15 |
13.5 |
7 |
6.3 |
61 |
|
W56010810 |
W56020810 |
8x10 |
5/16x3/8 |
182 |
15.3 |
13.5 |
7 |
6.3 |
61 |
|
W56011011 |
W56021011 |
10x11 |
3/8x7/16 |
197 |
18 |
16.5 |
8.5 |
7.3 |
88 |
|
W56011012 |
|
10x12 |
|
217 |
19.5 |
16.5 |
9 |
8.7 |
113 |
|
W56011113 |
W56021113 |
11x13 |
7/16x1/2 |
217 |
21 |
18 |
9 |
8.7 |
113 |
|
W56011213 |
|
12x13 |
|
218 |
21 |
19.5 |
9 |
8.7 |
123 |
|
W56011214 |
|
12x14 |
|
218 |
21.5 |
19.5 |
9 |
8.7 |
123 |
|
W56011314 |
W56021314 |
13x14 |
1/2x9/16 |
238 |
22.5 |
21 |
9.5 |
9 |
165 |
|
W56011415 |
W56021415 |
14x15 |
9/16x5/8 |
238 |
23.5 |
22 |
9.5 |
9 |
165 |
|
W56011417 |
|
14x17 |
|
245 |
26 |
22 |
10.5 |
9.2 |
175 |
|
W56011617 |
W56021617 |
16x17 |
5/8x11/16 |
258 |
26.5 |
25.5 |
11 |
10.5 |
208 |
|
W56011719 |
W56021719 |
17x19 |
11/16x3/4 |
290 |
29.5 |
26.5 |
12 |
11 |
278 |
|
W56011819 |
|
18x19 |
|
290 |
29.5 |
27.3 |
12 |
11 |
278 |
|
W56011922 |
W56021922 |
19x22 |
3/4x7/8 |
296 |
33.7 |
29 |
12.5 |
11.5 |
300 |
|
W56012022 |
W56022022 |
20x22 |
13/16x7/8 |
316 |
34.5 |
31.5 |
13 |
12 |
360 |
|
W56012123 |
|
21x23 |
|
316 |
35 |
32 |
13 |
12 |
360 |
|
W56012224 |
W56022224 |
22x24 |
7/8x15/16 |
324 |
36.7 |
33.7 |
13 |
12 |
434 |
|
W56012426 |
W56022426 |
24x26 |
15/16x1 |
328 |
40.5 |
37.2 |
14.1 |
12.5 |
476 |
|
W56012427 |
|
24x27 |
|
328 |
41.2 |
37.2 |
14.1 |
12.5 |
476 |
|
W56012528 |
W56022528 |
25x28 |
1x1-1/16 |
345 |
43 |
39.5 |
14.5 |
13.5 |
508 |
|
W56013032 |
W56023032 |
30x32 |
1-1/8x1-1/4 |
360 |
48.5 |
45.3 |
16.5 |
15 |
677 |
|
W56013034 |
W56023034 |
30x34 |
1-3/16x1-5/16 |
402 |
51.5 |
45.5 |
19 |
17 |
773 |
|
W56013236 |
|
32x36 |
|
402 |
53.7 |
47.7 |
19 |
17 |
773 |
|
W56013436 |
|
34x36 |
|
440 |
54.5 |
51.5 |
20 |
18 |
1131 |
|
W56013538 |
W56023538 |
35x38 |
1-3/8x1-1/2 |
440 |
57.5 |
53 |
20 |
18 |
1131 |
|
W56013641 |
W56023641 |
36x41 |
1-7/16x1-5/8 |
440 |
61.7 |
53.7 |
20 |
18 |
1156 |
|
W56013842 |
|
38x42 |
|
440 |
61.7 |
53.7 |
20 |
18 |
1156 |
|
W56014146 |
|
41x46 |
|
470 |
69.7 |
61.7 |
20.5 |
19 |
1590 |
|
W56014650 |
W56024650 |
46x50 |
1-13/16x2 |
510 |
76.3 |
70.5 |
21.5 |
20.5 |
1938 |
