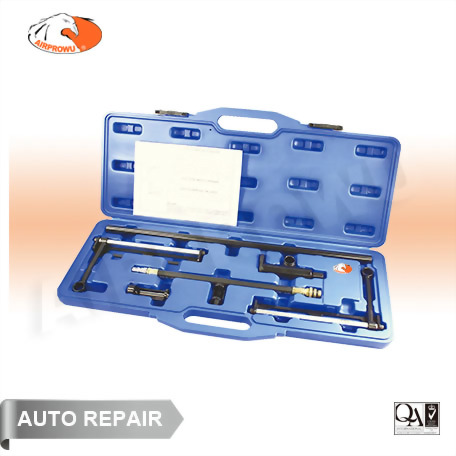

One Man Operation-Valve Spring Compressor Kit
نموذج :
AET-00790K
AET-00790K
One Man Operation-Valve Spring Compressor Kit
● Easy for single use, operated by a thread bar to fix on right place
● Recessed pocket on valve pusher allows replacement retrieval of valve collets
● Complete service tool kit for installation and removal of the valve spring without
removing the cylinder head from the engine
One Man Operation-Valve Spring Compressor Kit
● Easy for single use, operated by a thread bar to fix on right place
● Recessed pocket on valve pusher allows replacement retrieval of valve collets
● Complete service tool kit for installation and removal of the valve spring without
removing the cylinder head from the engine
AET-00790K
One Man Operation-Valve Spring Compressor Kit
● Valve pusher size: Ø 22mm
● Application: 12V, 16V, 20V, 24V engine
One Man Operation-Valve Spring Compressor Kit
● Valve pusher size: Ø 22mm
● Application: 12V, 16V, 20V, 24V engine
AET-00790K
One Man Operation-Valve Spring Compressor Kit
Interpretation:
● 1. Install to the engine cylinder bore
● 2. Installation tool(refer to step 1-3)
● 3. The trachea into the lock cylinder hole
(see step 4/ Through the duct during
operation, the air guided into the engine)
● 4. Remove the valve spring seat of the circular sleeve
● 5. The suite “A” placed in the cylinder mouth Alignment(see step 5)
● 6. Use 14mm wrench clockwise rotation
● 7. Use needle-nosed pliers 45 degrees to remove iron(see step 6)
One Man Operation-Valve Spring Compressor Kit
Interpretation:
● 1. Install to the engine cylinder bore
● 2. Installation tool(refer to step 1-3)
● 3. The trachea into the lock cylinder hole
(see step 4/ Through the duct during
operation, the air guided into the engine)
● 4. Remove the valve spring seat of the circular sleeve
● 5. The suite “A” placed in the cylinder mouth Alignment(see step 5)
● 6. Use 14mm wrench clockwise rotation
● 7. Use needle-nosed pliers 45 degrees to remove iron(see step 6)
