Universal Oil Funnel Set (For Europe Cars)
Features :

Universal Oil Funnel Set (For Europe Cars)
Features :
- Screw-on type oil funnel prevents unsafe oil spills.
- Transparent lower chamber clearly shows oil flow process.
- Large oil passage allows oil to be refilled more rapidly.

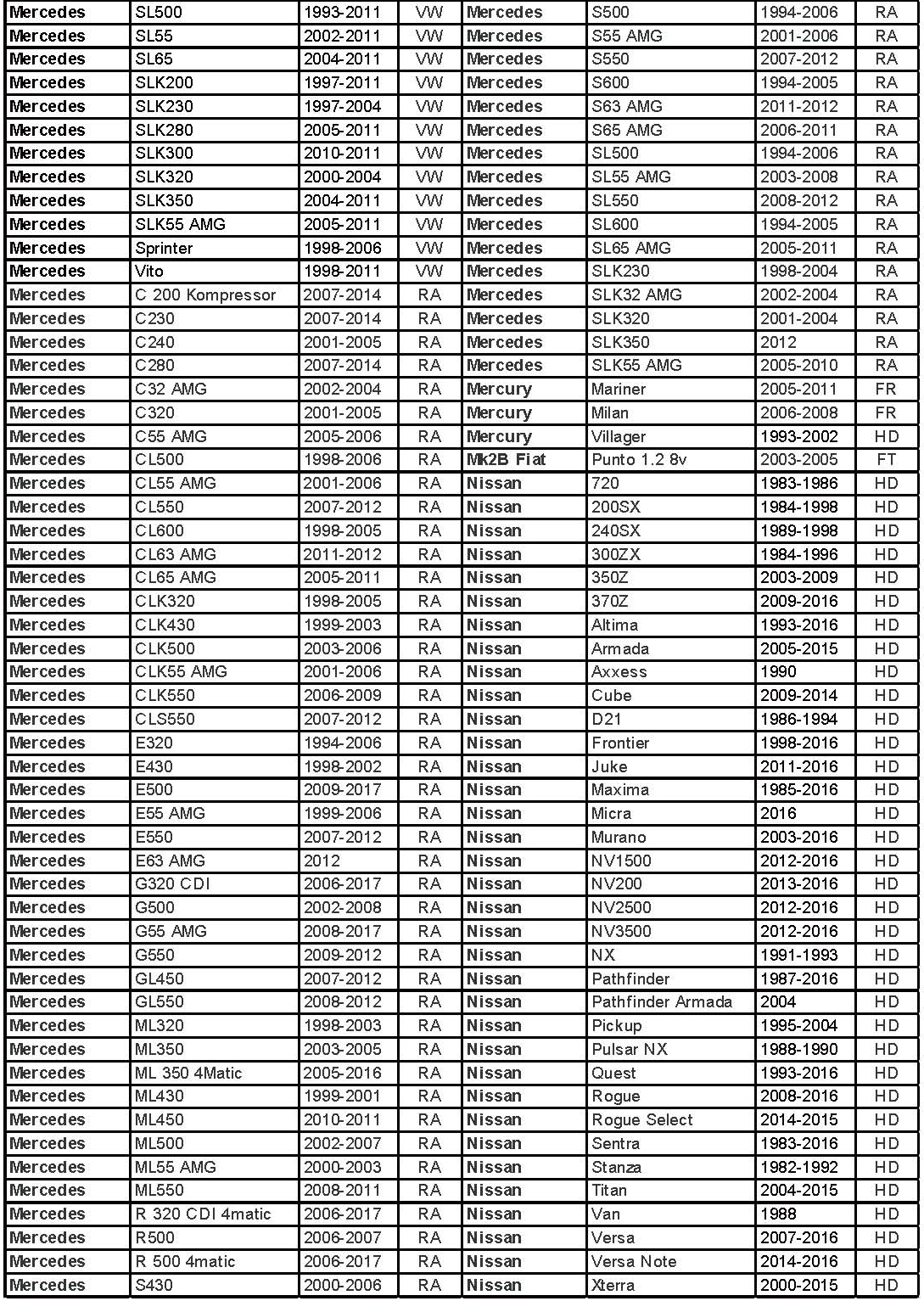

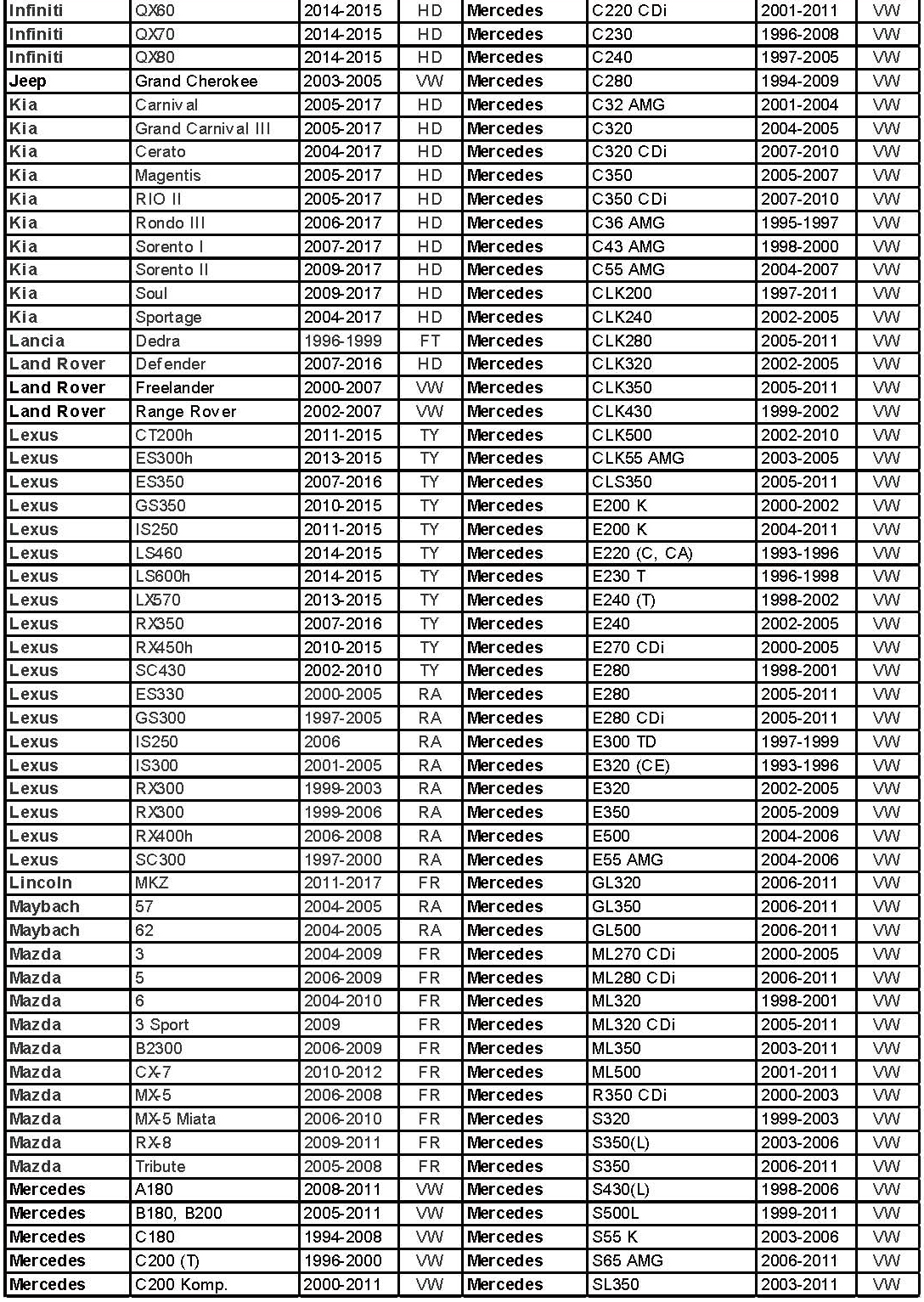

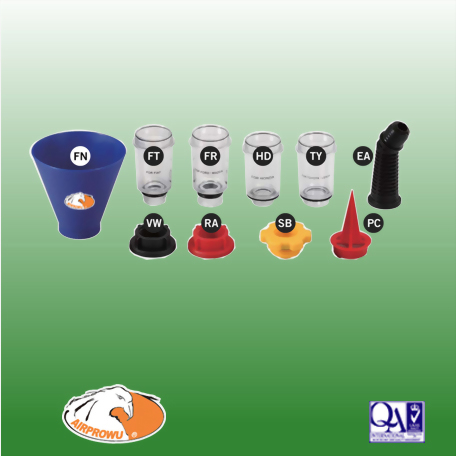

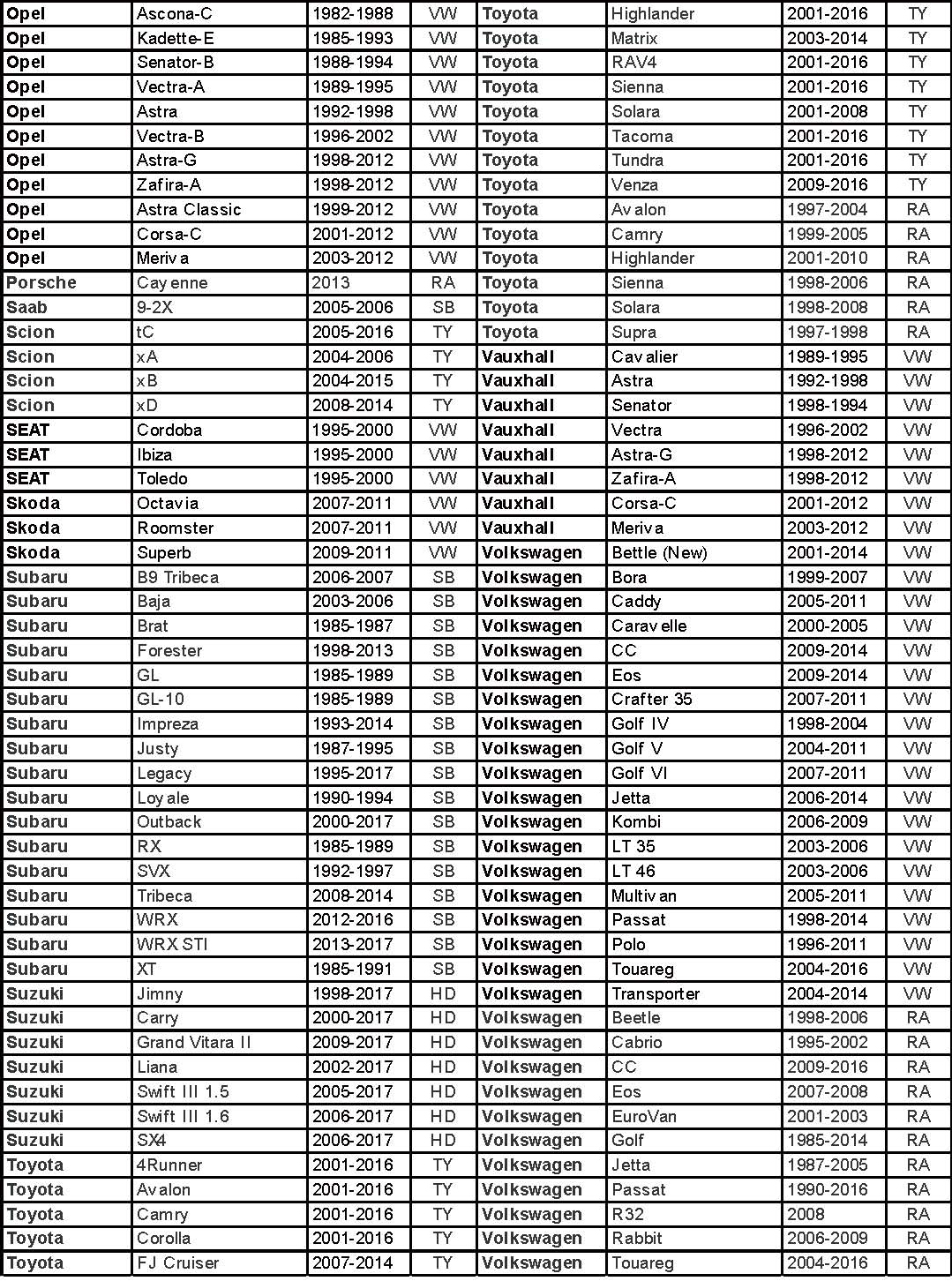

- Includes adapters for most common European vehicles.
- Provided with a storage holder and a drain plate.

Universal Oil Funnel Set (For Europe Cars)

Instructions

Use funnel and chambers

1. Choose a suitable chamber.

2. Connect the chamber to funnel.

3. Connect the chamber to oil filler neck on car (Fig.1).

Use funnel, chambers and adapters

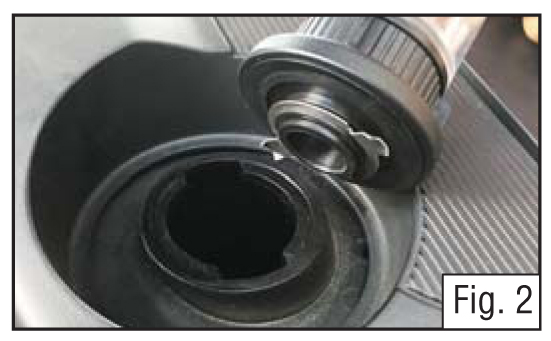

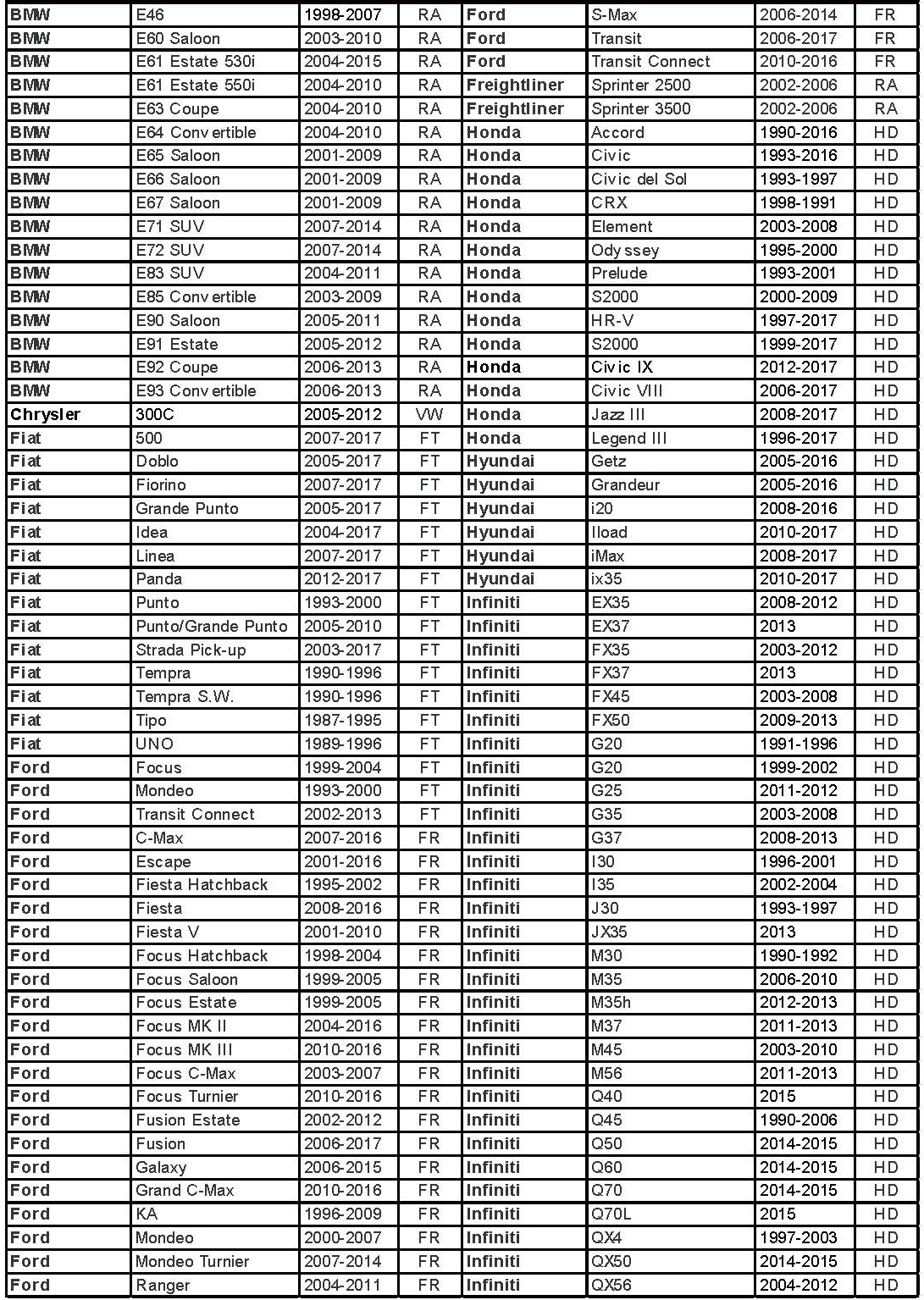

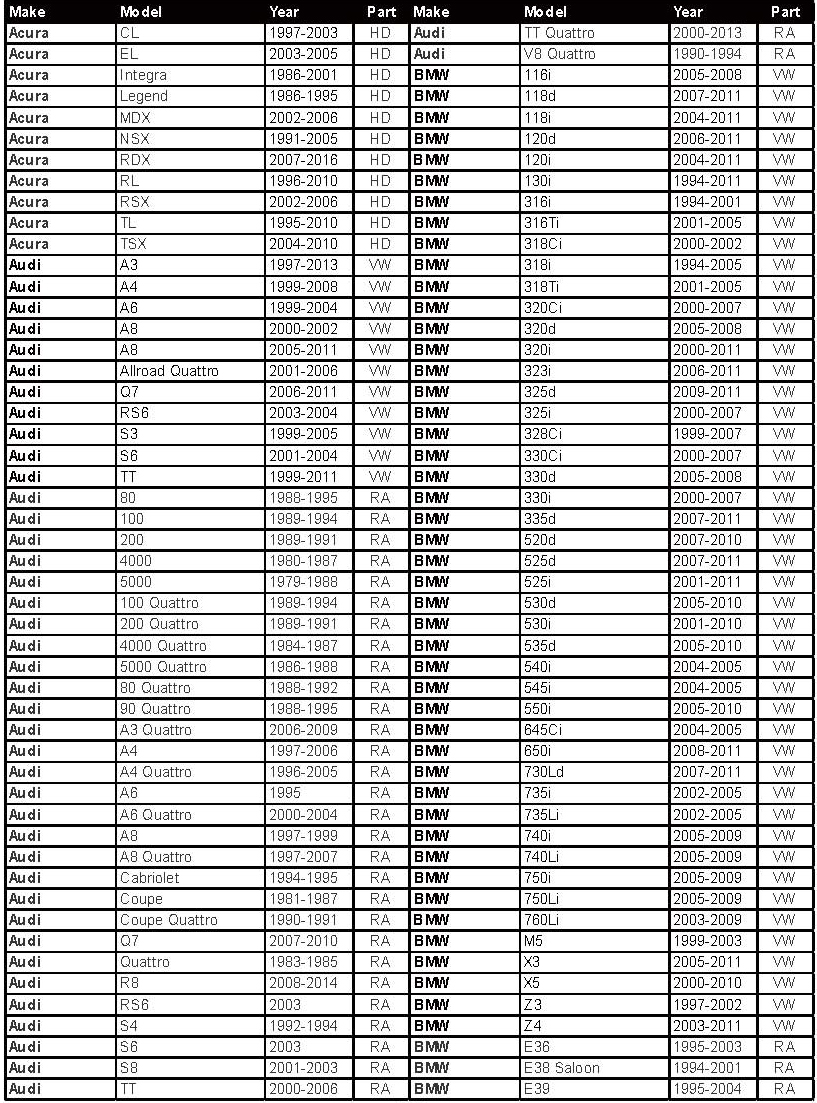

1. Choose a suitable adapter (Fig.2).

2. Connect the adapter to a suitable chamber.

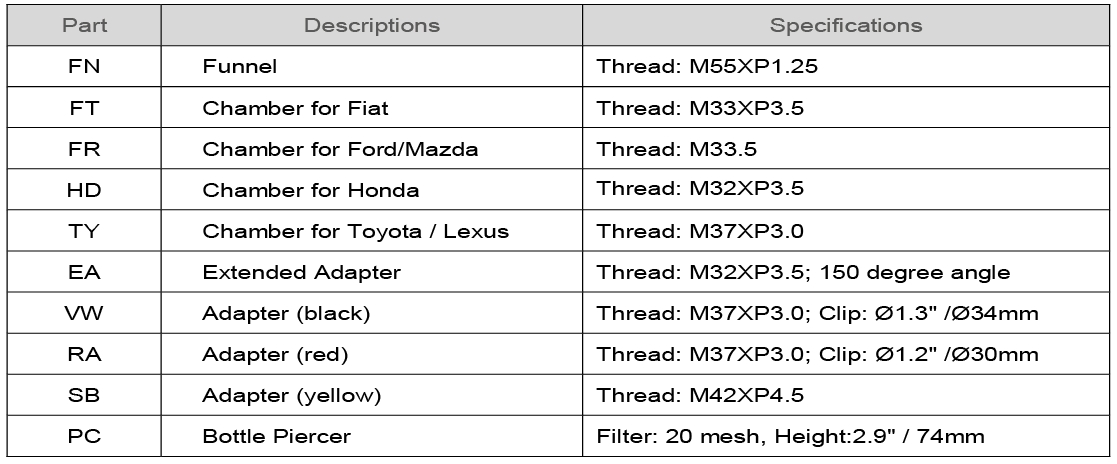

- Adapter black (VW) and red (RA) connect to chamber for Toyota/Lexus (TY)

- Extended adapter (EA) and adapter yellow (SB) connect to chamber for Honda (HD)

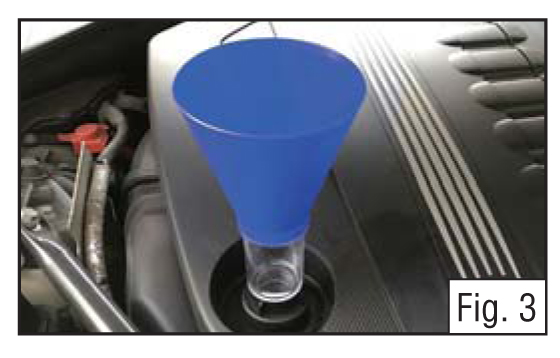

3. Connect the adapter to oil filler neck on car (Fig. 3).

Use bottle piercer

1. Connect a suitable chamber to the funnel.

2. Connect the piercer to funnel.

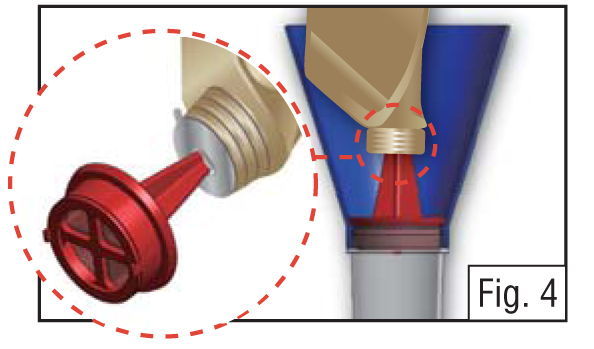

3. Oil can be refilled by putting a new bottle upside down and directly to piercer (Fig. 4).
