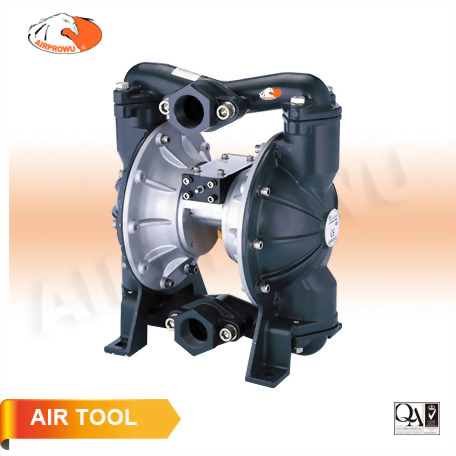

1-1/2" Double Diaphragm Pump (Aluminum Alloy Pump)
نموذج :
VAP-A40O
VAP-A40O
1-1/2" Double Diaphragm Pump
(Aluminum Alloy Pump)
● Liquid Inlet & Outlet: 1-1/2" NPT
● Air Inlet & Outlet: 1/2" NPT
● Aluminum Alloy Pump
● Wetted & Center Body: Aluminum
● Pipe Type: Center
● Ball Cover: Thermoplastic Rubber
● Ball: Bakelite
● Ball Seat: Thermoplastic Rubber
● Dimension: (L)38 x (W)28 x (H)46 cm
● Max. Pressure: 8.3Bar(kgf/cm2); 29psi-79.75psi
● Working Pressure Advised: 2-5.5 Bar(kgf/cm2); 29-79.75 psi
● Quantity/ Cycle: 1.45L
● Air Cons.: 2400 L/min (84.72 SCFM)
● Solid Limit: Ø4.8-6.0 mm
● Inlet Lift (Deep): 6 m-Wet / 3.7 m-Dry
● Max Flow Rate: 79.75 GPM (300 LPM)
● Weight: 16 kg
● Certificates: CE/ Ex II 2 GD c IIB T4-T5
