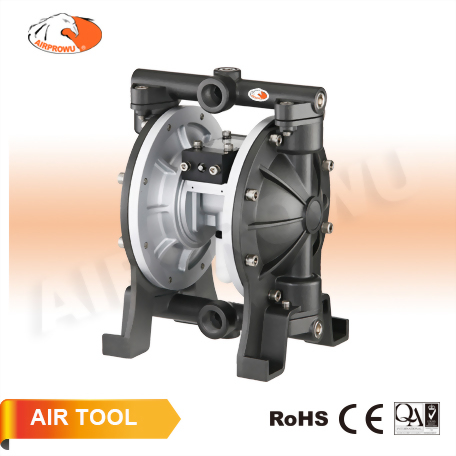

VAP-A30UATS
3/4" Double Diaphragm Pump
(Aluminum Alloy Pump)


● Liquid Inlet & Outlet: 3/4" PT(BSP)
● Air Inlet & Outlet: 1/4" & 3/8" PT(BSP)
● Material: UPE
● Wetted & Center Body: Aluminum
● Pipe Type: Center
● Ball Cover: Aluminum
● Ball: PTFE
● Ball Seat: Stainless Steel
● Certificates: CE/ Ex II 2 GD c IIB T4~T5

VAP-A30UATS
3/4" Double Diaphragm Pump
(Aluminum Alloy Pump)


● Dimension: (L)28 x (W)23 x (H)37 cm
● Min. Pressure: 0.5 Bar (kgf/cm2); 7.25 psi
● Max. Pressure: 8.3 Bar (kgf/cm2); 120 psi
● Working Pressure Advised: 1.5~5 Bar (kgf/cm2); 21.75~72.5 psi
● Quantity/ Cycle: 225 ml
● Solid Limit: Φ2.4 mm
● Air Cons.: 540 L/min (19.06 SCFM)
● Inlet Lift (Deep): 6 m-Wet / 4.5 m-Dry
● Max Flow Rate: 23.74 GPM (90 LPM)
● Weight: 8 kg
