3/4" No Reaction Arm Pulse Torque Wrench w/ Torque Controller
نموذج :
SA23124-TC
SA23124-TC 3/4"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Twin Hammer Mechanism
● Free Speed: 5,500 RPM
● Max. Torque: 295-1328 ft-lb (400-1,800 Nm)
● L x W x H: 43 x 20 x 45 cm
● Weight: 6 kg (13.23 lb)
Torque traceability system description
● Principle: Traceable calibration according to ISO6789 Standard
- Flow chart:
● Reminder: Please calibrate the tool according to the ISO6789 standard and calibrate regularly!
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Twin Hammer Mechanism
● Free Speed: 5,500 RPM
● Max. Torque: 295-1328 ft-lb (400-1,800 Nm)

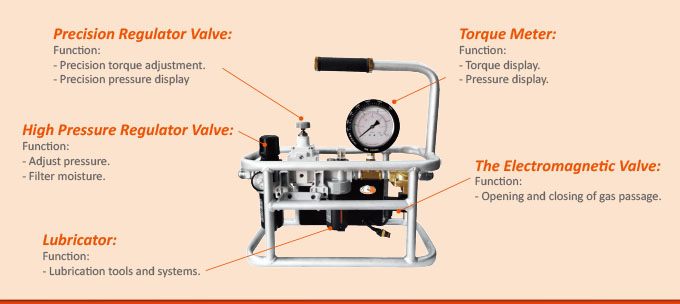

Torque Controller
● L x W x H: 43 x 20 x 45 cm
● Weight: 6 kg (13.23 lb)
Torque traceability system description
● Principle: Traceable calibration according to ISO6789 Standard
- Flow chart:
● Reminder: Please calibrate the tool according to the ISO6789 standard and calibrate regularly!
SA23124-TC 3/4"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
Torque Controller
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
|
Model No. |
Square |
Free Speed |
Max Torque |
Length |
Net Weight |
Air |
|||
|
四方頭 |
無負載轉速 |
最大扭力 |
長度 |
重量 |
進氣口 |
||||
|
Inch |
R.P.M |
ft-lb |
N-m |
Inch |
mm |
lb |
kg |
NPT(PT) |
|
|
SA23124-TC |
3/4 |
5,500 |
295-1328 |
400-1800 |
8.86 |
225 |
10.58 |
4.8 |
3/8" |
Torque Controller
SA23124-TC 3/4"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Precise torque control
● Visible torque reading and easy operation
● No Reaction arm required
● No hydraulic pump required
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Precise torque control
● Visible torque reading and easy operation
● No Reaction arm required
● No hydraulic pump required
SA23124-TC 3/4"
Pulse Torque Wrench
w/ Torque Controller
Pulse Torque Wrench
w/ Torque Controller
